corrugated paperboard line

Price:

This machine is composed of a roll web support, a single-side corrugated cardboard forming press, and a rotary paper cutting unit.

Product number:9

Category: light machinery

隐藏域元素占位

Description

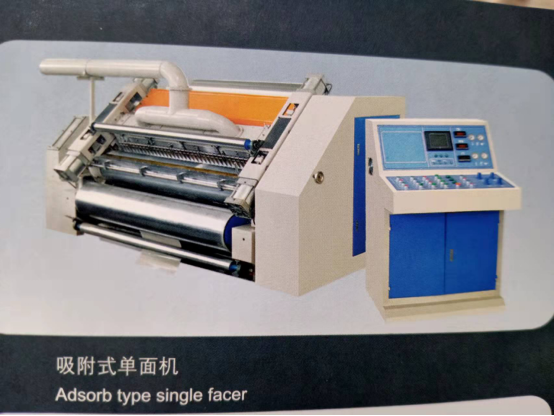

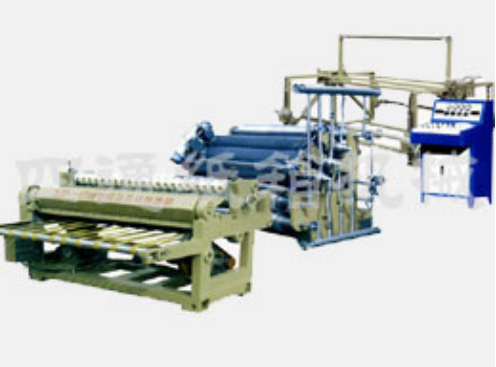

Single face corrugated paperboard line

Single face corrugated paperboard line

Function and Characteristics

This machine is composed of a roll web support, a single-side corrugated cardboard forming press, and a rotary paper cutting unit.

No baking or drying in necessary for the cardboard produced. Corrugated cardboard of more than three layers can be produced if this machine is used together with the gluing machine or the veneering machine. This machine has such virtues as rational structure, advanced process, high quality cardboard produced, high efficiency, low labor intensity and convenient operation &maintenance etc. It is an ideal equipment for a carton plant to produce corrugated cardboards.

Effective width	1800 mm
Max. speed	20—30 m/min	Motor power	12.625kw
Economic speed	15—20 m/min	Floor area	6 X16m
Heating mode	steam	workers	4--6
Wave shape	UV、A、B、C、E、F	Machine weight	5.5 tons

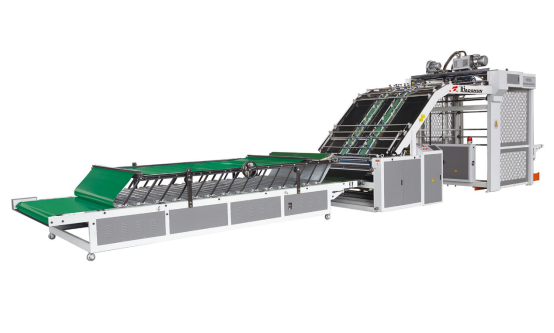

lamination machine

lamination machine

Max lamination size: 1600X1250 mm

Min lamination size: 370X370 mm

Lamination capacity: 0-90 meter/min

Power voltage: 8Kw/380V/50 hz

Dimension: 11500X2500X2600

Printing and slotting machine

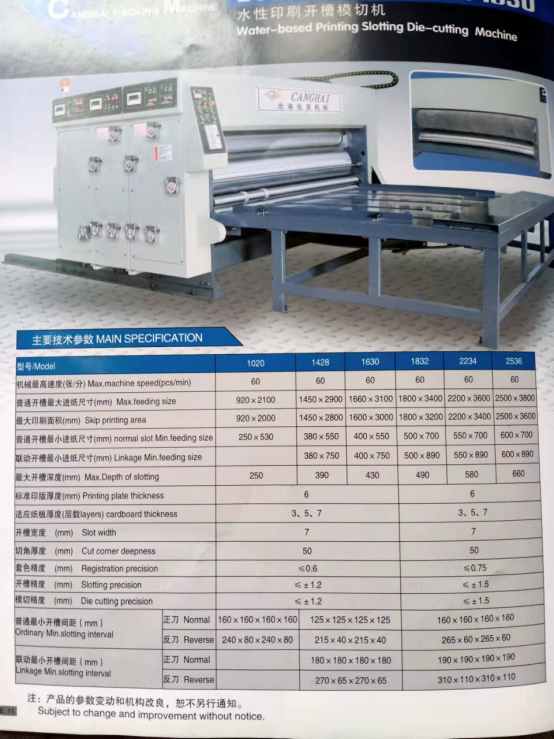

High Speed 2 Color Printing Slotting Die Cutting Machine (LEAD EDGE FEEDING)

Printing and slotting machine

Machine configuration parameters

NO.	Name	unit	specification
1	Machine inside width	mm	1020
2	Max production speed	m/min	120
3	Economic operation speed	张/分	80-120
3	Economic operation speed	m/min	80-120
4	Max paperboard size	mm	920×2100
5	Min paperboard size	mm	400×1000
6	Max printing area	mm	920×2000
7	Every next paper size	mm	1900×2600
8	Stand printing plate thickness	mm	6
9	Adapt the thickness of paperboard	mm	2--11
10	Min slotting interval	mm	360105360*105
11	Max slotting depth	mm	850
12	Printing roller axial adjust	mm	±10

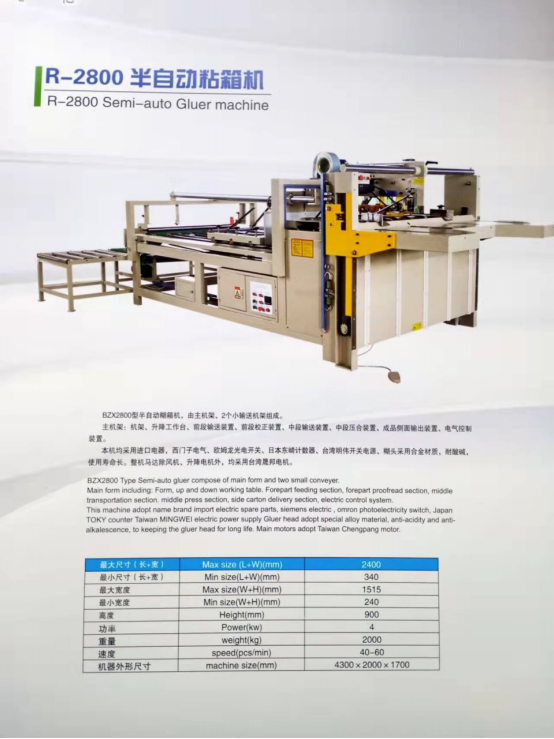

Carton pasting and finishing machine

Carton pasting and finishing machine

Max size: length and width 2400 mm
Min size: length and width: 340 mm

Main Configuration
Semi-automatic gluer is new-type environmental equipment, mainly used in carton sticking, abandon the traditional copper stapling method, raised the productivity, and product quality is good.
Main machine frame: machine frame, ascend and descend worktable, front part convey equipment, front part amending equipment part convey equipment, middle part press together equipment, finished product side output equipment electrical controlling equipment.
